MT-15B-AS Series

Name: MT-15B-AS-B2L3W
SKU: 11333
Availability: OutOfStock

Product Name:MT-15B-AS-B2L3W

6 Ports LTE/WiFi/GNSS Adhesive Mount Antenna

Highlighted applications:
This robust 6-in-1 waterproof antenna is suitable for all outdoors applications which need precision GNSS location data and premium MIMO LTE and 3 WiFi connections. Please see below for more details.

Customization

Contact Sales

Catalog

Description

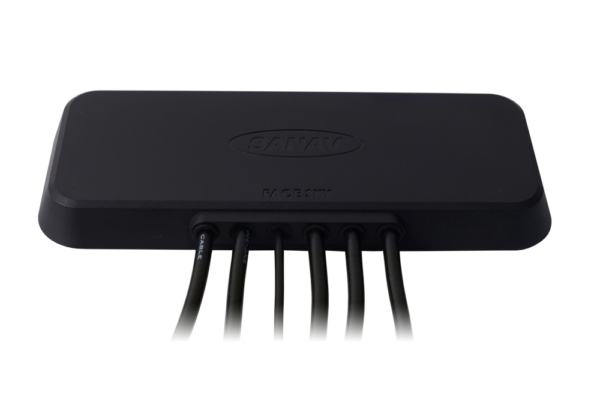

Adhesive Mount Low Profile Combination Antenna Solution

Unictron offers a powerful 6-in-1 combo antenna solution for V2X & telematics applications. The antenna consists of 2 LTE MIMO, 3 WiFi MIMO and 1 GNSS element. Customizable antenna elements, cable assembly & connectors are available.

Technical Briefs

Function : GNSS / LTE / WIFI
Dimension : 170.34mm(L) x 70.34mm(W) x 15.4mm(T)
Mounting Type : Adhesive Mount
Antenna Element Count : 6 IN 1
Operating Temperature : -40 ~ +85 oC
IP Rating : IP67
Standard Antenna Products use SMA connectors.
If you need other type of connectors, please use our customization service .
